10:1 Geared Nema 14 Stepper Motor with Integrated Planetary Gearbox 1.8° 2 Phase High Torque 0.26Nm(36.82oz·in) Bipolar 1.2A 2.7Ω 73mm 4-Lead Shaft 20mm φ8mm Cable 1M 3D Printer DIY CNC
4.8 (37 items)
Limited Time SaleUntil the end
01
46
22
US$18.23 cheaper than the new price!!
Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Free cash-on-delivery fees for purchases over $99
See all stores
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
Used US$12.16
Product details
| Management number | 212895763 | Release Date | 2026/04/12 | List Price | US$12.16 | Model Number | 212895763 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Specifications: 10:1 Geared nema 14 stepper motor with integrated planetary gearbox has the following various dimensional parameters. Body size 35x35x73mm (1.38x1.38x2.88in), Shaft length 20mm, Shaft diameter Ø8mm, D-cut length 15mm, Lead color Black (A+) Green (A-) Red (B+) Blue (B-), Cable 1M, Weight 409g.

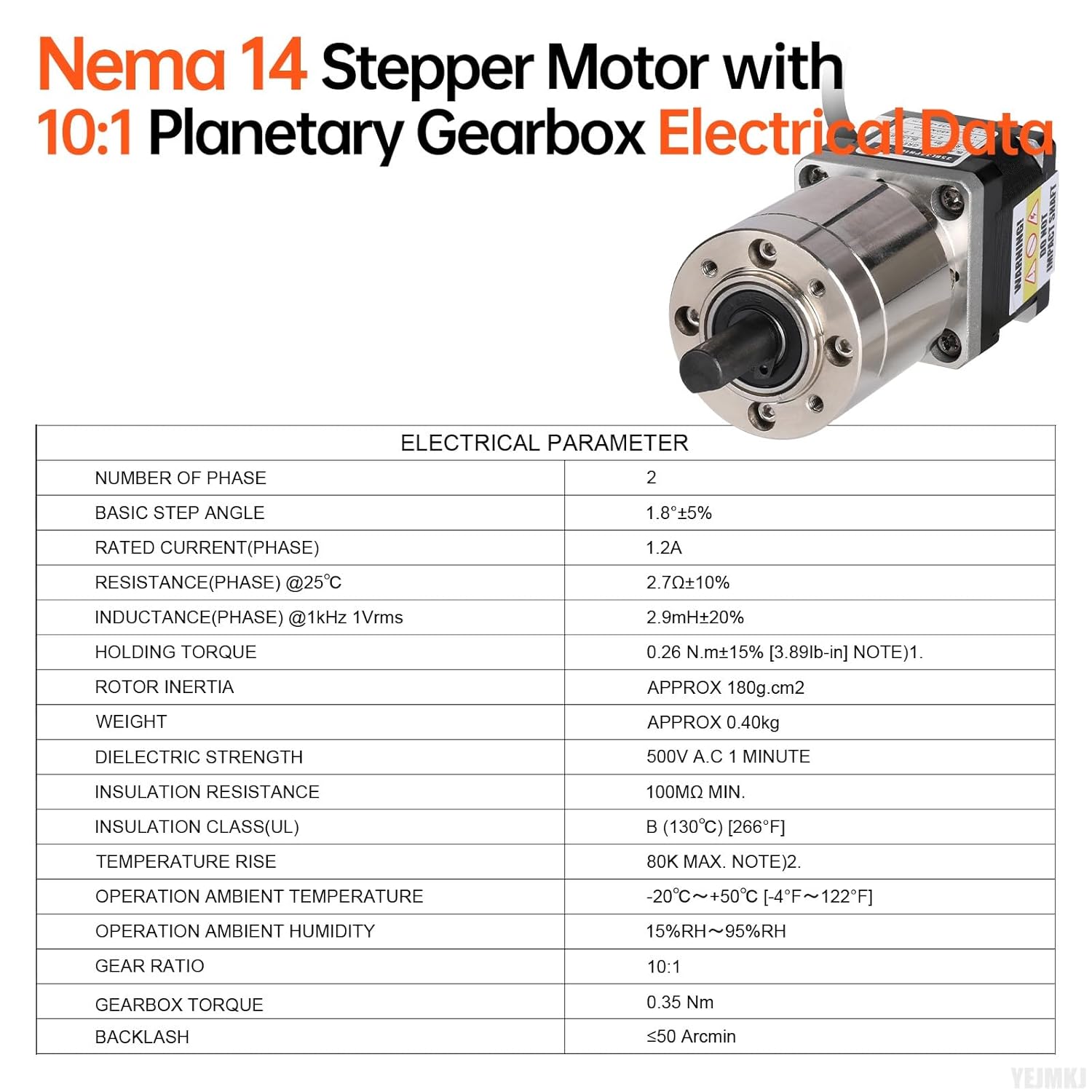

- Characteristics: Ratio 10:1 Planetary Gearbox 14 Stepper Motor, 2 Phase, Step angle 1.8 Degree(200 steps/rev), Holding torque 26Ncm (36.82oz·in), Resistance 2.7Ω, Rated current 1.2A, Rotor inertia approx 180g.cm², Inductance 2.9mH±20%.
- Safety Specifications: Operating safely and reliably, this Nema 14 Stepper Motor with planetary gear comes with the following key safety parameters. Dielectric strength 500V A.C 1 MINUTE; Insulation resistance 100MΩ MIN; Insulation class(UL) B (130℃) [266°F]; Temperature rise 80K MAX; Operation ambient temperature -20℃～+50℃ [-4°F～122°F]; Operation ambient humidity 15%RH～95%RH.
- Smarter Core Design: Built with advanced steel cores and precisely tuned windings, this nema 14 planetary reducer stepper motor generates up to 20% stronger holding torque while significantly reducing noise output. Achieve smoother machine motion and lower acoustic impact.
- Important Details: Increasing speed lowers torque, with the recommended range of 0–600 RPM. Lower current results in lower torque and temperature rise, while reduced voltage decreases torque (range: 12–24V DC). The 35mm Stepper Motor with Planetary Gearbox is perfect for 3D printers, DIY robots, CNC machines, and other automated systems, offering a compact size and high torque for demanding tasks.
