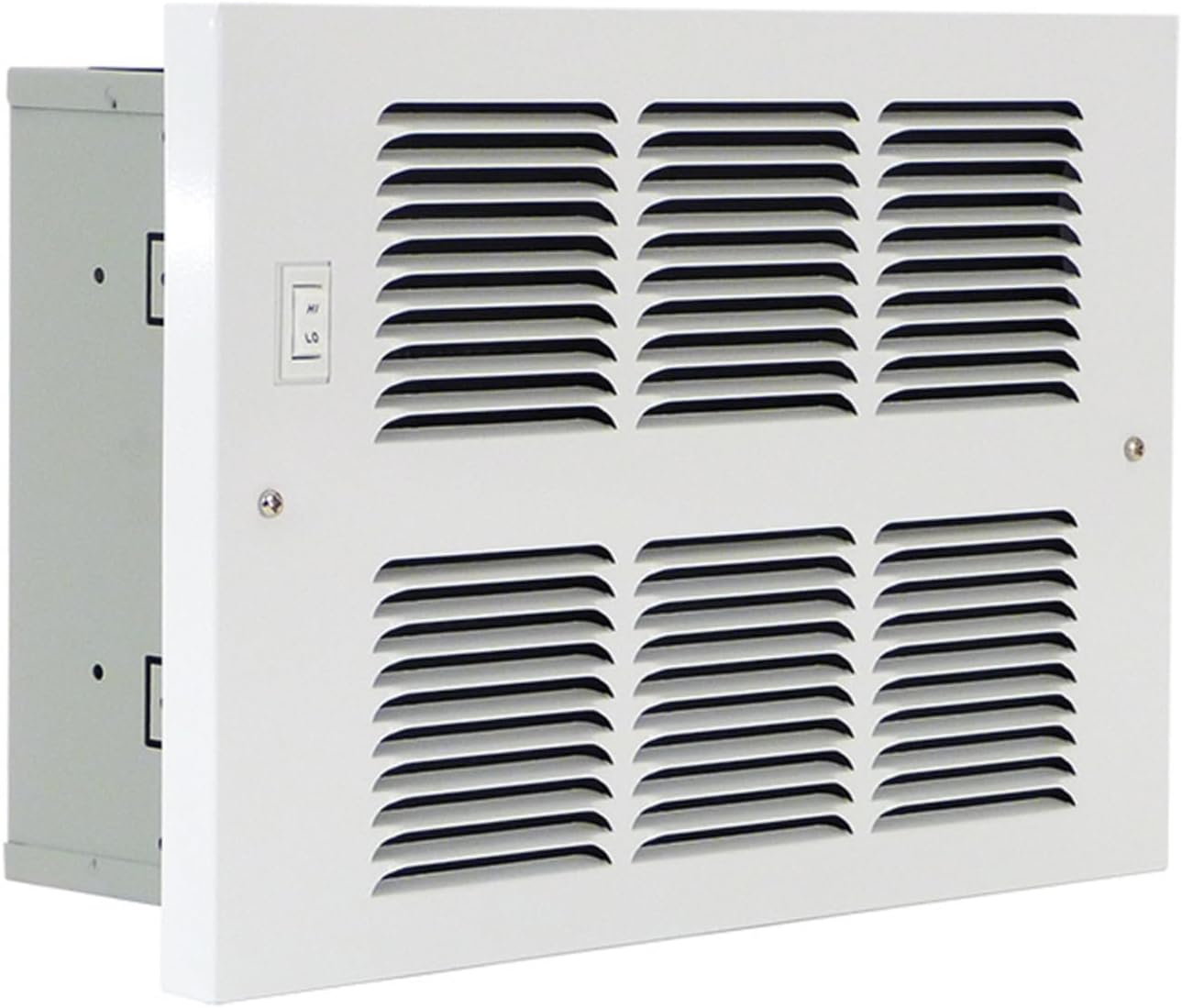

KING H612 6/8-AS/FS-GW 120V 6000/7600BTU Hydronic Wall Heater, White

Product Description • 4 Aluminum fins per inch • Square Cage Blower • 2 Speed Blower Motor • Aqua Stat – Fan temperature control: This component makes sure the water temperature is over 115°F before the fan is enabled • Hi / Off / Low Fan Switch mounted on front grille • 5/8” OD Copper Tubes • Compact, flow-through design • Permanently lubricated motor • Easy motor removal for maintenance • Quiet operation • Powder-coated white Grille • Up flow fan increases motor life • Large make up wiring area • Convenient up flow water connections From the Manufacturer The H series hydronic heater was developed in the Pacific Northwest for use in townhomes and other city dwellings where space is at a premium. It can also be used as a supplemental heater in a floor heating system commonly used in laundry rooms, mud rooms or hallways. The small size and quiet operation make it perfect for bedrooms too. Designed to fit between 16 on center studs and with the water feed on top, the H series heater can be placed in any location in a house. Manufactured in the U.S.A., our product quality, on time delivery and customer service is second to no one. All components are ETL tested to UL1995. It has the following features: Squirrel Cage Blower 2 Speed Motor, 5/8-Inch OD Copper tubes, 4 or 8 Aluminum fins per inch, Flow-through design, Fast coil heating, Permanently lubricated motor, Easy motor removal for maintenance, Quiet operation, Powder-coated white grille, 50 CFM to 120 CFM, and Hi / Off / Lo fan switch.

• In-wall, Fan-Driven, Zone-Controlled Heat
• Heat Only The Rooms Which Need It, Borrowing Energy From What’s Already There: The Hot Water Heater.
• Compatible With Typical Hot Potable Water Sources
• Tangential Blowers For Whisper Quiet Operation
• Fast Coil Heating For Heat Transfer
• 1/2” Trade Size Copper Tubes
• Flow-Through Design
• Permanently Lubricated Motor
• Hi / Off / Lo Fan Switch
• Proudly Made in the USA with U.S. & Global Materials
