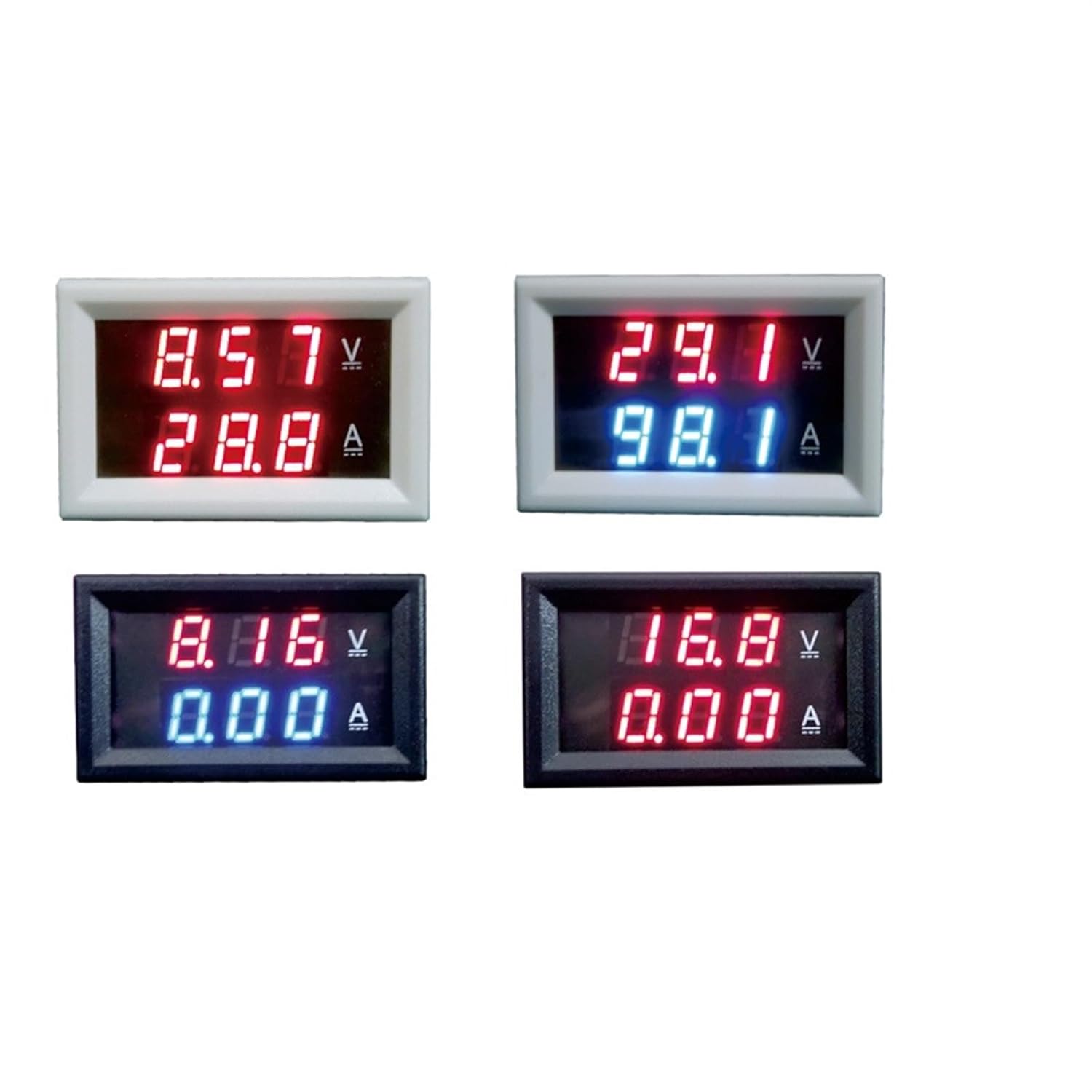

YB27VA DC 3.5-30V LED Digital Voltmeter Ammeter 10A Amp Volt Panel Voltage Current Meter 3 Wire 999mA 1Pcs(Color:White (red-red),Size:200A(75mV))

Gauges************************************************************************************************************************************************************************YB27VA LED Digital Voltmeter Ammeter DC 3.5-30V 10A Amp Volt Panel Meter Voltage Current Meter Three-wire 9.99mA 99.9mA 999mA 20A 50A 100A 200A 500A 1000AAttention:1,9.99mA, 99.9mA, 999mA, 2A, 5A, 10A, 20A direct test, the shunt is built in.2,More than 10A(except for 20A direct test) ,you must use a shunt to work,even 0.1A, or it will be burnt.3,More than 10A(except for 20A direct test) ,the shunt is not built in,you need to buy it separately. (1)If you have a shunt , please note your shunt specification (standard is 75mV, if no notes, all according to 75mV delivery) (2)If you don't have a shunt, please order the corresponding shunt, we will not notice at the time of shipment.4,Because the 24V battery charge full of floating voltage may be more than 30V, so "no" recommended direct use 24V battery.Technical Parameters: Supply voltage:DC3.5 30V(Note:The maximum input voltage can not exceed 30V, or be burnt.)<;20mADisplay mode: 0.28 "LED, single color or double color:(red-red):Both voltage and current are red color(red-blue):Voltage is red,current is blue. Dimension:48*29*21mmMounting dimension: 45.5*26.5 mmMeasurement rate: 500mS / timeMeasurement accuracy: 1% ( 2 digits)

• Gauges
• Item weight: 0.11 pounds
